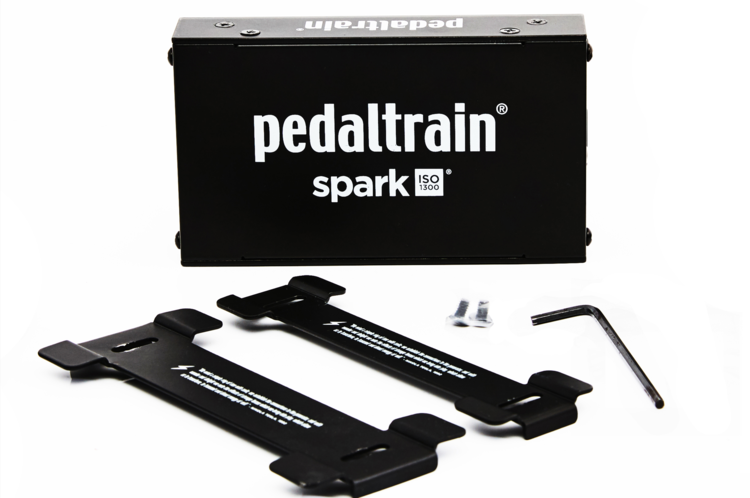

Pedaltrain Spark Ultra Thin 5 Output Power Supply

Key Features:

• Mount to, and move between, any Pedaltrain in 60 seconds
• Mount over velcro or dual lock - no additional tools, drilling, or adhesives required
• Designed to fit all Pedaltrain models from Nano to Terra
• Power up to 13 pedals out of the box with generous   assortment of DC power cables
• Power high draw digital pedals like M9, H9, and Strymon
• More powerful than many big bricks with 5 isolated outputs totaling 1300 mA of power - enough spark to power a big rig
• Pro quality with custom transformer, worldwide switching, output voltage regulation, short circuit protection, pro shielding, and low inductance noise

TECH SPECS

Dimensions:

• 5.75 in x 3.375 in x 1.1875 in (14.6 cm x 8.57 cm x 3 cm)

Power Specs:

• 5 isolated outputs:

  • (2) 500mA outputs

  • (3) 100 mA outputs

• 1300 mA total output

• Short circuit protection on all outputs

• Output voltage regulation and filtering

• Switchable for worldwide use (worldwide AC cables not included)

• Internal fuse for surge protection

• Professional magnetic shielding

Included:

• Assortment of 22GA Shielded DC Pedal Power Cables:

  • (2) 2.1mm 5 Position Daisy Chain (10” between each tap)

  • (3) 2.1mm Right Angle to Right Angle 18 in

  • (1) 3.5 mm Mini Plug to Right Angle 18 in

  • (2) 2.1mm Right Angle to Right Angle 30 in

  • (2) 2.5 mm Right Angle to Right Angle 18 in

• (2) patent applied for quick mount compression brackets and screws

• (1) IEC AC power cable

• (1) small hex wrench

• User Manual
